Hey there! As a supplier of CNC Turning, I've had my fair share of experiences with operating the controller of a CNC turning machine. It's not as complicated as it may seem at first glance, but there are definitely some key steps and tips that can make the process a whole lot smoother. So, let's dive right in!
Getting Familiar with the Basics
First things first, you gotta understand what a CNC turning machine is and what its controller does. A CNC (Computer Numerical Control) turning machine is a high - tech piece of equipment used to shape metal or other materials by rotating them against a cutting tool. The controller is like the brain of the machine. It interprets the instructions you input and tells the machine how to move, at what speed, and for how long.
Before you start operating the controller, make sure you're familiar with the different parts of the machine. Check out the spindle, which holds and rotates the workpiece, the cutting tool holders, and the coolant system. Also, take a look at the control panel on the controller. It usually has a display screen, a keyboard, and some function buttons.
Powering On and Initial Checks
When you're ready to start, turn on the power to the CNC turning machine and the controller. Give it a few seconds to boot up. While it's starting, do a quick visual inspection of the machine. Look for any loose parts, signs of damage, or leaks in the coolant system.
Once the controller is up and running, you'll need to do some initial settings. This might include setting the date and time, and calibrating the axes. Calibration is crucial because it ensures that the machine moves accurately according to the instructions you give. Most controllers have a built - in calibration function. Just follow the prompts on the screen to complete the process.
Loading the Program
Now, let's talk about loading a program into the controller. A program is a set of instructions that tells the machine what to do. You can create a program using CAD/CAM software on your computer and then transfer it to the controller. There are a few ways to do this. You can use a USB drive to copy the program from your computer to the controller. Just plug the USB drive into the appropriate port on the controller and follow the menu options to load the program.
Some controllers also support network connections. If your machine is connected to a local network, you can transfer the program directly from your computer to the controller over the network. This is a more convenient option if you have a lot of programs to manage.
Setting Up the Workpiece
After loading the program, it's time to set up the workpiece. First, select the right chuck or collet to hold the workpiece securely. The chuck or collet should be the right size for the workpiece. Then, carefully place the workpiece in the chuck or collet and tighten it. Make sure the workpiece is centered properly. You can use a dial indicator to check the alignment.
Next, you'll need to set the zero point for the workpiece. This is the reference point from which all the movements of the machine will be measured. Most controllers have a function to set the zero point. You just need to move the cutting tool to the desired zero point on the workpiece and then use the controller to set it.
Tool Selection and Setup
Selecting the right cutting tool is essential for a successful machining operation. Different materials and machining tasks require different types of cutting tools. For example, if you're machining a hard metal, you'll need a tool with a high - speed steel or carbide tip.
Once you've selected the tool, install it in the tool holder. Make sure the tool is properly seated and tightened. Then, you'll need to measure the tool length and diameter. The controller needs this information to accurately position the tool during the machining process. You can use a tool presetter to measure the tool dimensions and then enter the values into the controller.
Running a Test Program
Before you start the actual machining, it's a good idea to run a test program. This allows you to check if everything is set up correctly and if the machine moves as expected. Most controllers have a "dry run" function that lets you run the program without actually cutting the workpiece.
During the dry run, watch the machine closely. Check the movements of the axes, the rotation of the spindle, and the coolant flow. If you notice any issues, such as the machine moving in the wrong direction or the tool hitting the workpiece in an unexpected way, stop the program immediately and make the necessary adjustments.
Starting the Machining Process
If the test run goes well, you're ready to start the actual machining. On the controller, select the option to start the program. The machine will start moving the cutting tool according to the instructions in the program.
During the machining process, keep an eye on the machine. Check the cutting speed, the feed rate, and the depth of cut. These parameters can affect the quality of the finished product. If you notice any problems, such as poor surface finish or excessive tool wear, you may need to adjust these parameters. You can do this by pausing the program on the controller and making the necessary changes.
Monitoring and Quality Control
While the machine is running, it's important to monitor the machining process. Check the coolant level regularly to make sure the cutting tool stays cool. Also, listen to the machine. Unusual noises can be a sign of a problem, such as a dull tool or a misaligned workpiece.
After the machining is complete, remove the workpiece from the machine. Inspect it for any defects, such as rough surfaces, burrs, or dimensional errors. You can use measuring tools like calipers, micrometers, or a coordinate measuring machine (CMM) to check the dimensions of the workpiece. If the workpiece doesn't meet the specifications, you may need to make some adjustments to the program or the machining parameters and run the process again.
Powering Off and Maintenance
Once you're done with the machining, turn off the program on the controller and then power off the machine. Before you leave, do some basic maintenance. Clean the machine to remove any chips or coolant. Lubricate the moving parts as recommended by the manufacturer.
Regular maintenance is crucial for the longevity and performance of the CNC turning machine. Make sure you follow the maintenance schedule provided by the manufacturer. This might include tasks like changing the coolant, inspecting the belts and bearings, and checking the electrical connections.
Additional Considerations

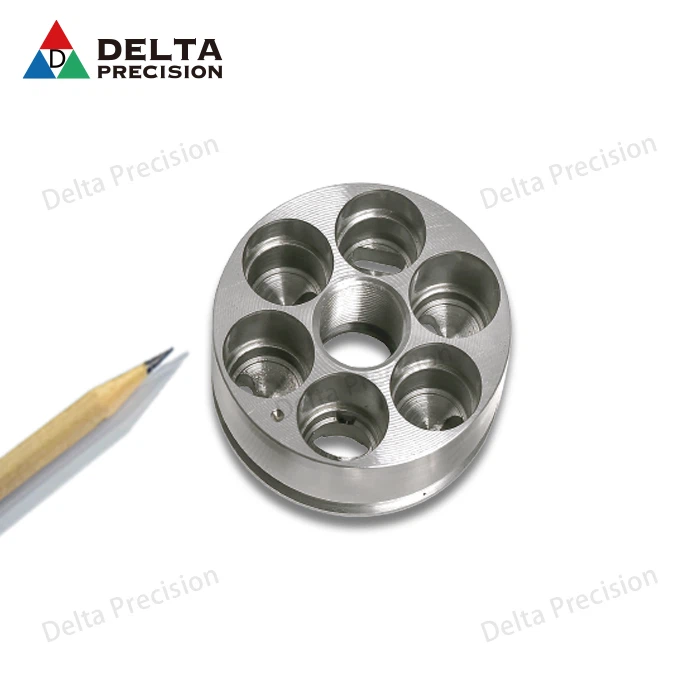

There are some advanced features and techniques that can enhance your CNC turning operations. For example, Multi - spindle Machining allows you to perform multiple machining operations simultaneously, which can significantly increase productivity. If you're interested in this, make sure your controller supports multi - spindle functionality and learn how to program it.
CNC Turning is a versatile process that can be used for a wide range of applications. Whether you're making small precision parts or large components, understanding how to operate the controller effectively is key.
Another technique is Automatic Bar Machining. It enables continuous machining of bars of material, reducing the need for manual loading and unloading. If your controller has this feature, it can streamline your production process.
Conclusion
Operating the controller of a CNC turning machine may seem daunting at first, but with a little practice and understanding, you'll be able to master it. Remember to follow the safety procedures, do regular maintenance, and keep learning about new features and techniques.
